Dairy Wastewater Treatment Oil Water Separator Machine For Resturant

Price : USD $ 8299 /sets 1-4 sets

MOQ : 1 set

Payment Terms : D/A,D/P,T/T,L/C

core components : Pump

place of origin : China

brand name : Readycome

productivity : 500L/Hour

weight (kg) : 100 kg

Applicable Industries : hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops

Contact Now

Oil Water Separator Device High Quality Dairy Wastewater Treatment For Resturant

Integrated oil-water separation treatment equipment is an environmental protection equipment specializing in the treatment of oily wastewater from restaurants. The product has many functions such as automatic treatment, grid filtration, oil-water separation, automatic oil scraping and discharge, heating and insulation, deep filtration, full automation, intelligent remote monitoring, etc. It can not only effectively separate out the debris and grease in the wastewater, but also carry out automatic discharge of the separated waste oil and grease and monitoring and management. At the same time, the product adopts an integrated and fully sealed structure, which can effectively prevent off-odor leakage and avoid air pollution. The product adopts an integrated and sealed structure, which can effectively prevent off-odor leakage and avoid polluting the air conditions.

Main features

Sealing properties:Adoption of gasket and pressure buckle form, integrated sealing, completely guarantee the odor will not leak out to pollute the environment.
Solid-liquid separatio: Adopting non-clogging and cleaning-free solid-liquid separation device, automatic cleaning function of the grid hole, slag transfer function, grid distance ≤ 4mm.
Oil-water separation: Adoption of automatic air-float oil removal device, which can effectively separate oil and grease, and the separation efficiency can reach 90 97%.
Deep filtration:Equipped with dosing and filtration function, it can carry out deep filtration treatment for wastewater, so that the effluent water quality can reach a higher standard.
Oil and grease collection:Fully automatic scraping oil collection with stable performance and no pipe clogging problem.
Oil collection container:Adoption of built-in fully sealed stainless steel oil collection tank with strong oil resistance, large capacity and long cleaning cycle.
Drainage method :Adopts automatic screw stirring device with automatic stirring function, which can prevent the grease from solidifying, and at the same time, automatically conveying the dirty oil.
Heating performance:It adopts full-automatic temperature-controlled heater, which can be started and stopped automatically according to the water temperature to ensure that it will not freeze and solidify in winter.
Performance monitoring:Equipped with automatic fault alarm and oil level alarm function, meanwhile remote monitoring is available.
Control system:Adoption of intelligent integrated circuit control system, ABS fireproof control box, fully automatic operation and intelligent remote control.

Dairy Wastewater Treatment Oil Water Separator Machine For Resturant

Application

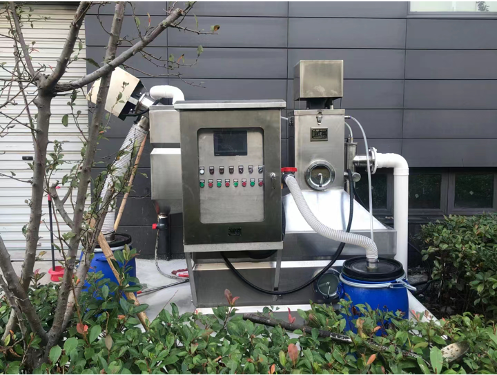

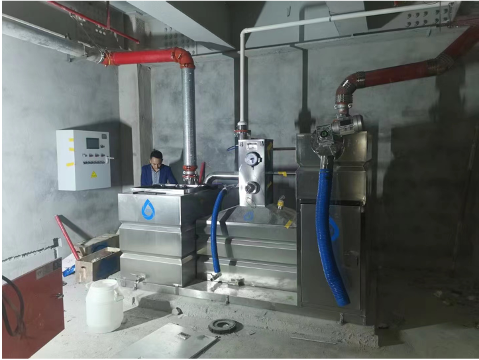

This equipment is widely used in the treatment of oily wastewater from commercial plazas, star hotels, airports, public cafeterias, food courts, apartments and residential kitchens.

Food processing plant

Large dining hall

Food court

Supermarket

Restaurant

Real estate

Metro Mall

Hotel

Catering

Details Images

Integrated oil-water separation treatment equipment is generally composed of three parts:
1. Primary separation bin (Dregs Bin)
2. Secondary separation bin
3. Tertiary treatment silo (sewage lifting silo)

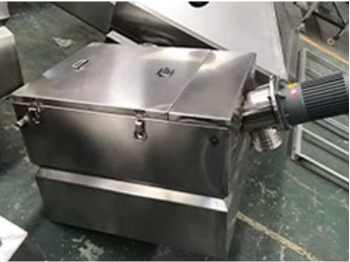

Primary separation bin (Dregs Bin)

Catering wastewater makes it way into the oil/water separation equipment and then flow into the primary separation bin (dregs bin) through the pipe. Inside the bin, there is such a filter screen that the solid and large particles in the restaurant wastewater will stay, while the liquid will flow down and enter the next stage. The solid matter will be pumped out of the bin by slag removal equipment driving its spiral blades and go into the slag collection drum to achieve solid-liquid separation.

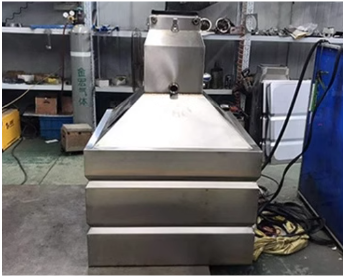

Secondary separation bin

Oil-water separation system: its cone structure makes the oil layer concentrated in the small space above, and the thickness of the oil layer can be reflecting the time of oil discharge through the sight glass.

Tertiary treatment silo

(sewage lifting silo)

After oil-water separation, the remaining sewage, through the pipe, is finally concentrated in the sewage lifting bin, and lifted and discharged out by submersible pumps. The silo is equipped with an automatic coupling device for easy disassembly and
installation of the pump, and the outlet pipe is equipped with a ball-type check valve to prevent backflow of sewage and prevent blockage. The pumps are automatically started and stopped by means of water-drop floats, so that there is no need for personnel to
stay on duty.
